HEX POINT CHISEL (INDUSTRIAL)

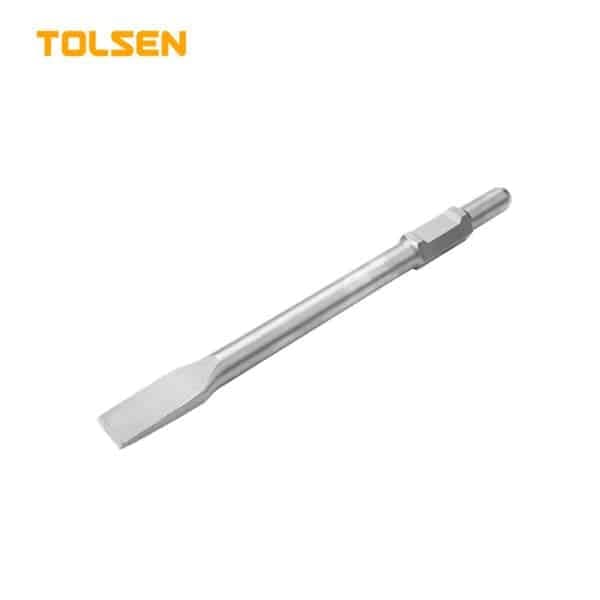

HEX FLAT CHISEL (INDUSTRIAL)
MASONRY DRILL BIT
• ISO5468, DIN8039
• High quality TCT tip
• 130° general angle
• Cylindrical shank
• Chrome plated surface
• Application in all rotary and percussion drilling machines
• For use in brick masonry block Light concrete
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 75460 | 3x60mm | 300 |
| 75461 | 4x75mm | 300 |
| 75462 | 5x85mm | 300 |
| 75475 | 5.5x100mm | 300 |
| 75463 | 6x100mm | 200 |
| 75476 | 6.5x100mm | 200 |
| 75477 | 7.0x100mm | 200 |
| 75464 | 8x120mm | 200 |
| 75478 | 9x120mm | 160 |
| 75465 | 10x120mm | 160 |
| 75466 | 12x150mm | 120 |
| 75479 | 13x150mm | 100 |
| 75467 | 14x150mm | 100 |
| 75468 | 16x150mm | 80 |
5PCS MASONRY DRILL BITS SET
• ISO5468, DIN8039
• High quality TCT tip
• 130° general angle
• Cylindrical shank
• Chrome plated surface
• Application in all rotary and percussion drilling machines
• For use in brick masonry block light concrete
• Packing: plastic box
| STOCK NO. | SIZE | QTY./CARTON |
| 75459 | 4x75, 5x85, 6x100, 8x120, 10x120mm | 80 |
CONCRETE DRILL BIT
• High quality TCT tip
• Chrome alloy steel body
• Round shank, double flute
• Sand blasting finishing
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 75500 | 3.0x60mm | 400 |
| 75501 | 4.0x75mm | 400 |
| 75502 | 4.5x75mm | 400 |
| 75503 | 5.0x85mm | 400 |
| 75504 | 5.5x100mm | 400 |
| 75505 | 6.0x100mm | 400 |
| 75506 | 6.5x100mm | 400 |
| 75507 | 7.0x100mm | 320 |
| 75508 | 8.0x120mm | 320 |
| 75509 | 8.5x120mm | 320 |
| 75510 | 9.0x120mm | 320 |
| 75511 | 10.0x120mm | 240 |
| 75512 | 11.0x150mm | 240 |
| 75513 | 12.0x150mm | 240 |
| 75514 | 13.0x150mm | 160 |
| 75515 | 14.0x150mm | 160 |
| 75516 | 15.0x150mm | 160 |
| 75517 | 16.0x150mm | 80 |
| 75519 | 19.0x160mm | 80 |
| 75521 | 22.0x160mm | 60 |
| 75522 | 24.0x160mm | 60 |
| 75523 | 25.0x160mm | 60 |
EXTRA-LONG CONCRETE DRILL BIT
M2 HSS TWIST DRILL BITS (INDUSTRIAL)
BLACK & GOLD HSS TWIST DRILL BITS (INDUSTRIAL)
•HSS/M2, DIN338
•High Speed Steel features a gold shank and black flute
•130°Split point
•Packing: plastic box
| STOCK NO. | SIZE | FLUTE LENGTH | QTY./CARTON |
| 75105 | 1.0x34mm | 12mm | 40 |
| 75106 | 1.5x43mm | 20mm | 40 |
| 75107 | 2.0x49mm | 24mm | 40 |
| 75108 | 2.5x57mm | 30mm | 40 |
| 75109 | 3.0x61mm | 33mm | 40 |
| 75110 | 3.2x65mm | 32mm | 40 |
| 75111 | 3.5x70mm | 39mm | 40 |
| 75112 | 3.8x75mm | 43mm | 40 |
| 75113 | 4.0x75mm | 43mm | 40 |
| 75115 | 4.5x80mm | 47mm | 24 |
| 75117 | 5.0x86mm | 52mm | 24 |
| 75118 | 5.5x93mm | 57mm | 24 |
| 75119 | 6.0x93mm | 57mm | 24 |
| 75120 | 6.5x101mm | 63mm | 16 |
| 75121 | 7.0x109mm | 69mm | 16 |
| 75122 | 7.5x109mm | 69mm | 16 |
| 75123 | 8.0x117mm | 75mm | 16 |
| 75124 | 8.5x117mm | 75mm | 16 |
| 75125 | 9.0x125mm | 81mm | 16 |
| 75126 | 9.5x125mm | 81mm | 16 |
| 75127 | 10.0x133mm | 87mm | 16 |
| 75128 | 10.5x133mm | 87mm | 16 |
| 75129 | 11.0x142mm | 94mm | 16 |
| 75130 | 11.5x142mm | 94mm | 16 |
| 75131 | 12.0x151mm | 101mm | 16 |
| 75132 | 12.5x151mm | 101mm | 16 |
| 75133 | 13.0x151mm | 101mm | 16 |
19PCS BLACK & GOLD HSS TWIST DRILL BITS SET (INDUSTRIAL)
25PCS BLACK & GOLD HSS FRACTIONAL STRAIGHT SHANK JOBBER LENGTH DRILL BITS SET (INDUSTRIAL)
• HSS/M2,DIN338
• High Speed Steel features a gold shank and black flute
• 130°Split point
• 3-flatted shank on 5mm and above for better chuck grip
• Packed by plastic box
| STOCK NO. | SIZE | QTY./CARTON |
| 75087 | 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13mm | 10 |
TITANIUM DRILL BIT
• HSS/M2, DIN338
• Fully ground
• Titanium coated surface
• 135°split point
• 1/4“ quick release hex shank
• Packing: blister card
| STOCK NO. | SIZE | QTY./CARTON |
| 75180 | 3x81mm | 80 |
| 75181 | 3.2x85mm | 80 |
| 75182 | 3.5x90mm | 80 |
| 75183 | 4x95mm | 80 |
| 75184 | 4.2x95mm | 80 |
| 75185 | 4.5x100mm | 80 |
| 75186 | 4.8x106mm | 80 |
| 75187 | 5x106mm | 80 |
| 75188 | 5.5x113mm | 80 |
| 75189 | 6x113mm | 80 |
| 75190 | 6.5x121mm | 60 |
| 75191 | 7x109mm | 60 |
| 75192 | 8x117mm | 60 |
| 75193 | 9x125mm | 60 |
| 75194 | 10x133mm | 60 |
